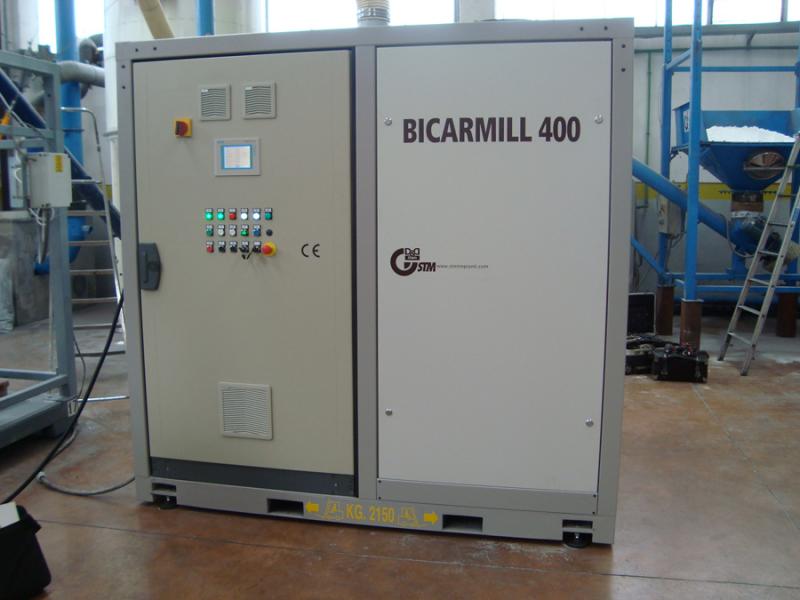

BICARMILL^®

BICARMILL is a turnkey system for the grinding and injection of sodium bicarbonate for industrial use.

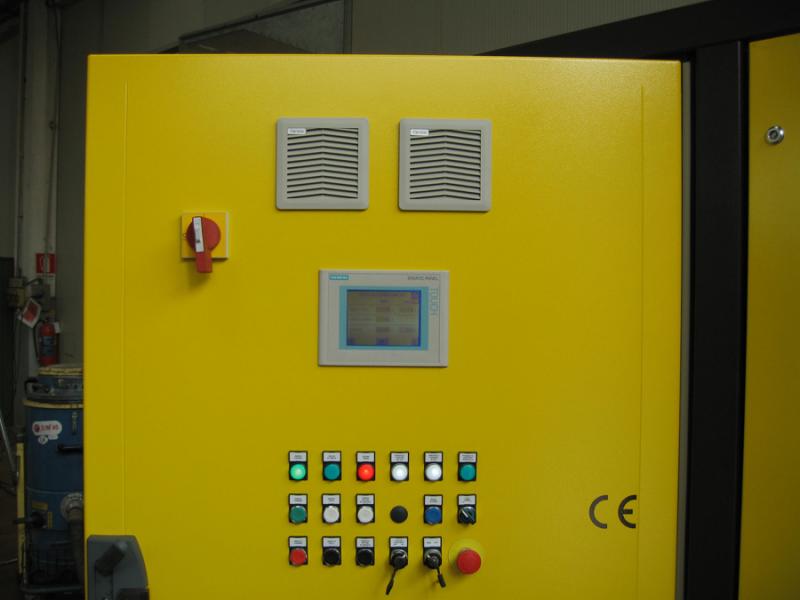

Optimal energy efficiency, excellent electro-mechanical control, systems and hardware and software management in a single box for grinding and propulsion of the reactant sodium bicarbonate.

Why Bicarmill^®?

STM has been developing and marketing advanced technologies for the field of fine and ultra-fine grinding since 1980, and for the last twenty years in particular its has been working on grinding sodium bicarbonate for smoke depuration.

On the strength of this long experience, STM aimed to design an innovative machine which is a perfect integration of mechanical and electronic technology, guaranteeing unrivalled performance in terms of reliability, productivity and energy savings.

The optimum use of power which results from the new horizontal layout of the grinding surface combined with a highly efficient classifier is confirmed by the minimal temperature increase detectable inside the grinding chamber.

This indicates that practically all the energy is used for grinding, and not dissipated in the form of heat. If we consider that over the lifetime of a mill, energy costs are significantly greater than the initial investment, efficient energy use is crucially important both economically and from an environmental point of view.

Ease of installation and maintenance

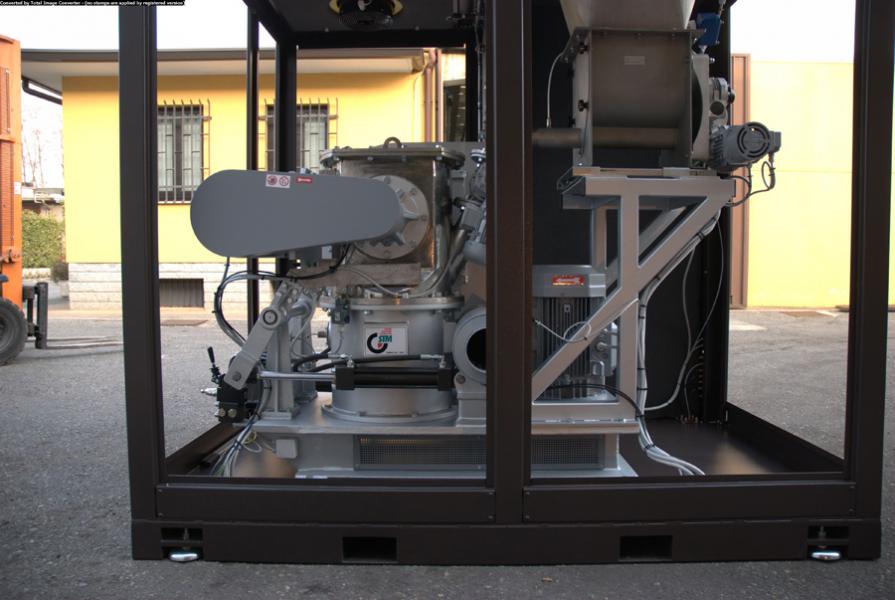

BICARMILL is designed to be positioned and installed on a simple stand.

It does not need to be fixed to the floor, as the mill's control system ensures perfect operational stability.

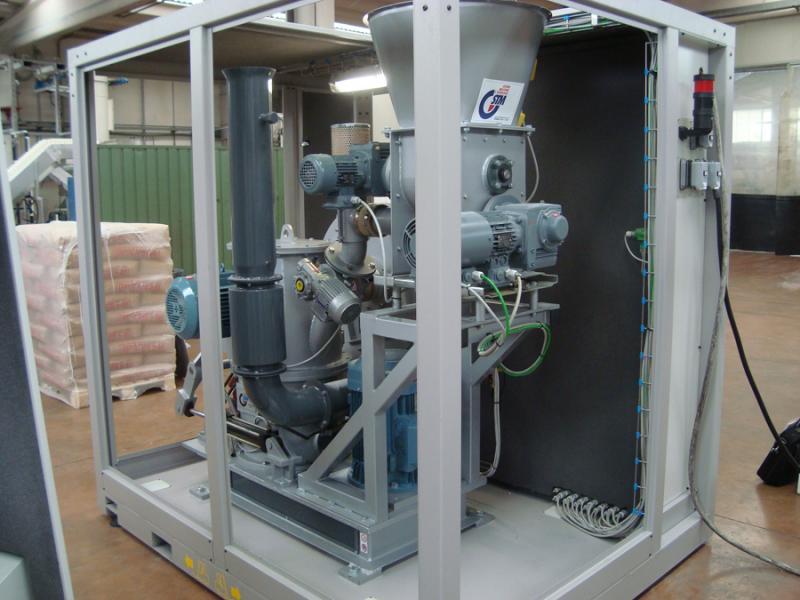

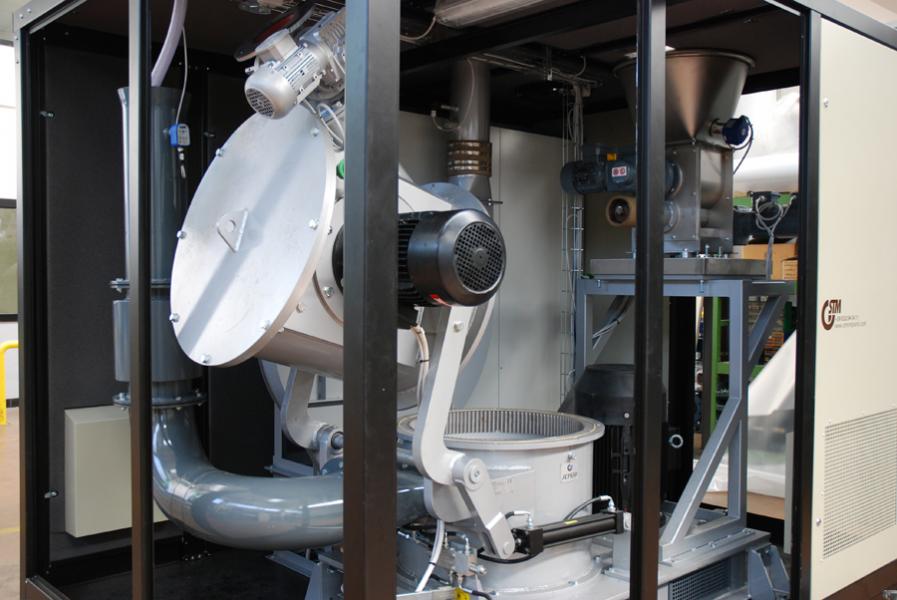

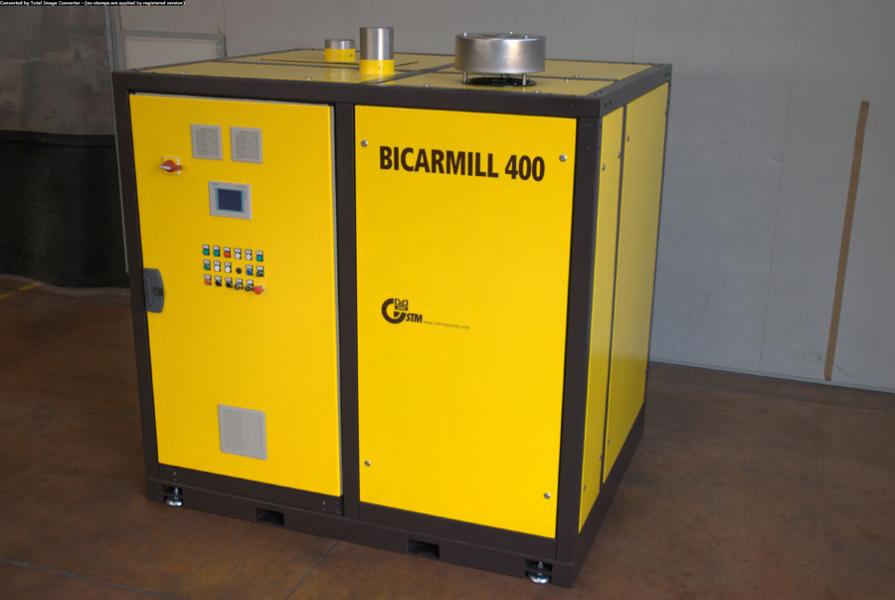

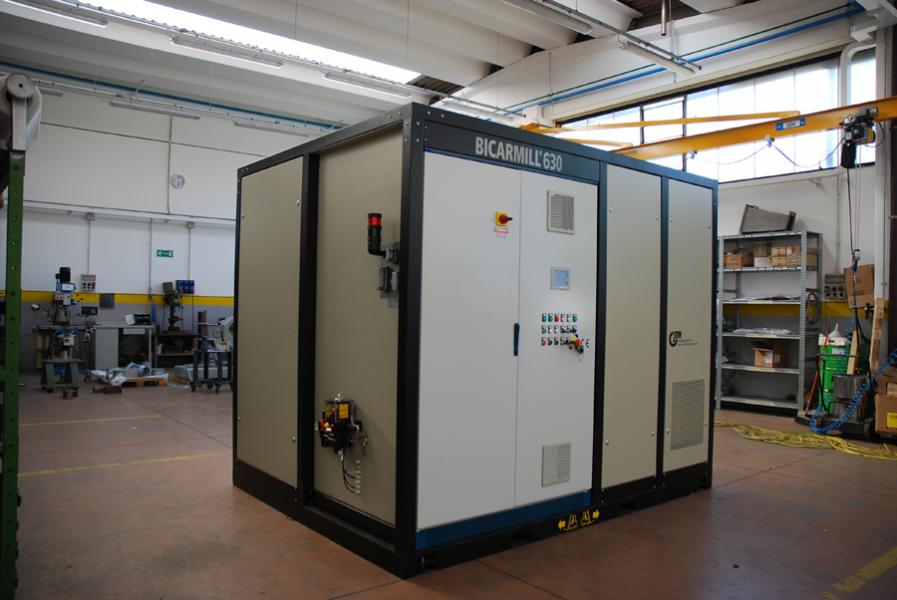

To comply with increasingly stringent regulations on noise levels, BICARMILL is enclosed in a soundproof cabin with interior lighting and panels which can be quickly dismantled to access all the mill's working parts safely and easily.

From complex installations to ready-to-use machines

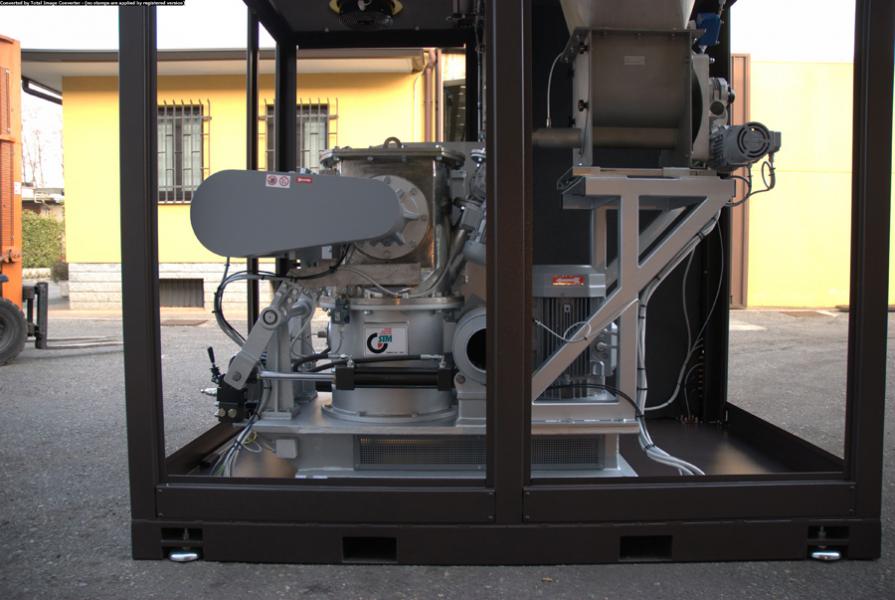

BICARMILL represents a revolution in mills for sodium bicarbonate; the system is complete with all mechanical and electronic components, fully tested and ready for use.

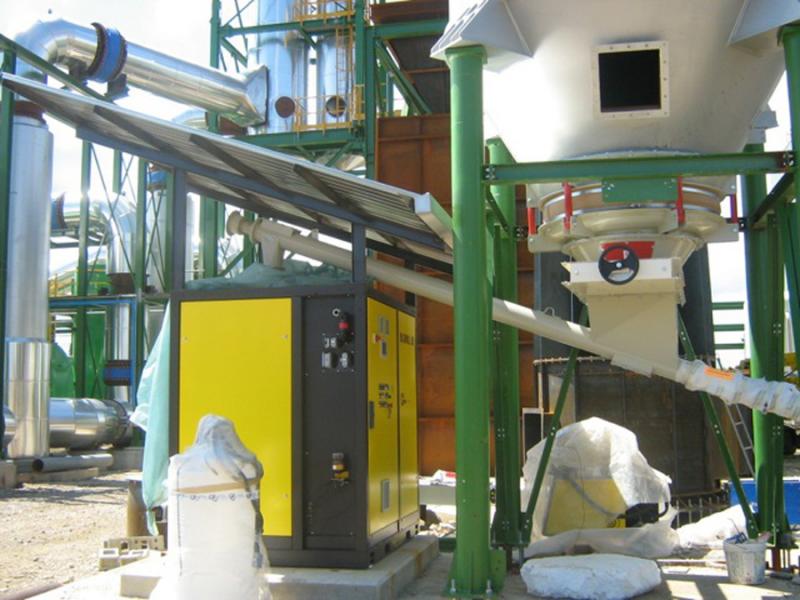

The client only needs to plug the machine in to the power supply, add the sodium bicarbonate and connect the injection point, and the BICARMILL system is ready to go: a top quality, reliable product which reflects all STM's knowledge and experience.

Construction specifications

PDF Brochure

Low energy use
Low noise emissions

Minimal maintenance
Excellent quality and reliability

For further informations about BICARMILL^®download our brochure

Based on the same technology:

Series JCF - JCFF impact mill

Generics machine data

BICARMILL® Size	Total Installed Power	Total Absorbed Power	Capacity per hour	Pollutant	Finesess*	Air Capacity	Pressure	Noisiness
BICARMILL® Size	KW	KW	Range - kg/h	Pollutant	Finesess*	mc/h	mmH2O	dBA
300	18,4	16,6	10 ÷ 250	HCl	d.90 < 30µm d.50 < 15µm	800,0	500,0	< 75
300	18,4	16,6	10 ÷ 250	SOx	d.90 < 20µm d.50 < 5µm	800,0	500,0	< 75
400	29,2	26,3	40 ÷ 450	HCl	d.90 < 30µm d.50 < 15µm	1500,0	800,0	< 75
400	29,2	26,3	40 ÷ 450	SOx	d.90 < 20µm d.50 < 5µm	1500,0	800,0	< 75
600	64,2	57,8	100 ÷1000	HCl	d.90 < 30µm d.50 < 15µm	2700,0	800,0	< 75
600	64,2	57,8	100 ÷1000	SOx	d.90 < 20µm d.50 < 5µm	2700,0	800,0	< 75
800	98,0	88,2	100 ÷1400	HCl	d.90 < 30µm d.50 < 15µm	4700,0	1000,0	< 75
800	98,0	88,2	100 ÷1400	SOx	d.90 < 20µm d.50 < 5µm	4700,0	1000,0	< 75
1000	129,0	116,1	100 ÷ 1800	HCl	d.90 < 30µm d.50 < 15µm	6000,0	1000,0	< 75
1000	129,0	116,1	100 ÷ 1800	SOx	d.90 < 20µm d.50 < 5µm	6000,0	1000,0	< 75
